Product Description
For cutting thick walled plastic and composite pipes. Cuts pipes using the ratchet principle in several strokes. Self-adapting pipe support positions pipes of various diameters correctly for a rectangular cut.
Technical attributes
| Length | : | 210 mm | |
| Width | : | 92 mm | |
| Height | : | 28 mm | |
| Weight | : | 500 g |
Documents
Detailed description

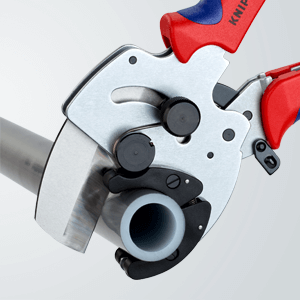

 | Pipe cutter for cutting thick-walled plastic and composite pipes with a diameter Right-angled cut thanks to exact positioning and holding in place When inserting a plastic or composite pipe, it is automatically positioned precisely at a 90° angle to the blade. The moving contact jaws centre and reliably hold the pipe. The cut through the pipe therefore takes place automatically at right angles to the pipe. The Knipex 90 25 40 model has only been designed for thick-walled pipes. The Knipex range has models 90 20 185 and 94 10 185 for thin-walled plastic pipes. |
Little physical effort: cutting stroke by stroke in a ratchet action
A blade stroke is triggered every time the pipe cutter is pressed. The stepwise cutting takes place using a ratchet action. When cutting with the 90 25 40 pipe cutter, the blade made of hardened special tool steel penetrates further into the composite or plastic pipe being cut with every ratchet stroke. A pipe is cut in several steps, so that there is a very low amount of physical effort.
Sophisticated technology and details for efficiency and comfort
The Knipex 90 25 40 pipe cutter contains plenty of sophisticated technology. As a user, you will feel and see the direct benefits. The moving jaws adjust by themselves to thick-walled composite and plastic pipes of between 26 mm and 40 mm: one work step saved. The blade is replaceable: the value is maintained. The handles of the ratchet pipe cutter open by themselves thanks to the opening spring: this saves several hand movements. And the ratchet action described above divides work up into small steps: energy saved.
 | Knipex quality - pipe cutter for thick-walled plastic and composite pipes The pipe cutter from Knipex is a tool especially for the electrical instalation, plumbing and heating engineering sectors. Professional users expect a quality that permits simple and safe work as well as a tool that lasts for many years of hard use. We forge our tools from quality materials, machine them with high precision on modern machinery and harden them with careful multiple stage heat treatment. Every pair of Knipex pliers represents more than 130 years of specialist know-how. |
Short overview
- Pipe cutter for cutting thickwalled plastic and composite pipes
- Cutting capacity of diameters from 26.0 to 40.0 mm
- Cuts pipes in several strokes using a ratchet action

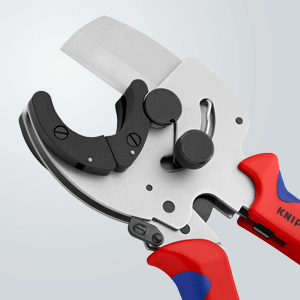

- Moving contact jaws hold the pipe at right angles to the blade for rectangular cuts
- Body of the tool made from high-grade chrome vanadium electric steel, oil-hardened
- Replaceable blade made from special tool steel, oil-hardened
- Handles with multi-component grips
