78 23 125 | Electronics Super Knips® (with 60° Angled Head) | Multi-Component Handle | Polished Head / INOX Steel - 125mm

SKU: 78 23 125

Sale price
85.99 AED

Tax included

In stock, 4 units

Product Description

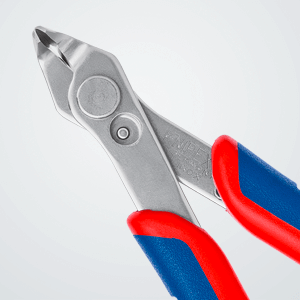

78 23 125 Electronic Super Knips®
Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Ground, very sharp cutting edges without bevel. Precisely shaped tips cut wires close to a surface from Ø 0.2 mm. Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life. Joint with stainless steel rivet. Extremely smooth movement for minimum operator fatigue. With opening spring and opening limiter. cutting edge hardness approx. 54 HRC. INOX tool steel.
  • Cutting capacities medium hard wire (diameter): Ø 0.6 mm
  • Cutting capacities soft wire (diameter): Ø 0.2-1 mm
  • Jaw length (B): 5.5 mm
  • Jaw thickness (joint) (D): 7.5 mm
  • Head width (A): 13.5 mm
  • Technical attributes

     Length:125 mm
     Width:77 mm
     Height:13 mm
     Weight:55 g

    Detailed description

    Cut fine and abutting wire accurately, and cut vertical wire from above

    Extremely sharp cutting edges made of stainless, air-hardened INOX steel

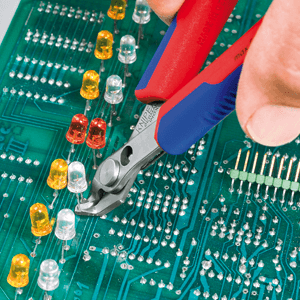

    The Knipex Electronic Super Knips 78 23 125 is manufactured from surgical steel (INOX steel). The cutting edges are ground without bevel and hardened to approx. 54 HRC for flush cutting. Thanks to precision tips, it cuts fine wires accurately, e.g. that are touching enclosures and components. The 60°angle of the cutting edges makes it possible to cut vertical wires also from above: ideal, for example, for work on printed circuit boards between capacitors and resistors.

    Work involving dexterity: low weight and smooth operation

    Great dexterity is needed when working on electronic components and in precision mechanics. Due to its frictionless handle spring, the Knipex Electronic Super Knips 78 23 125 is so smooth-running that energy can be metered out very precisely – with dexterity. Opening spring and opening restrictor simplify work further.

    A special detail ensures an accurate cut and long service life

    These precision pliers have been designed so that the user is able to concentrate completely on his work, also when working continuously, without the need to consider the tool.

    One special detail permits the most precise shear cuts on even the thinnest of wire, and at the same time gives the pliers a long service life: the extremely sharp cutting edges on the Electronic Super Knips 78 23 125 are protected against bumping into each other after cutting by the micro cutting edge misalignment.

    It is therefore clear that these pliers with their multi-component grips will sit comfortably in the hand for a long time.

    Knipex 78 23 125 Electronic Super Knips: high level of safety and quality

    The Knipex Electronic Super Knips is used for the finest cutting work in electronics and precision mechanics. Radio technicians, industrial electricians, mechatronics engineers and electronics engineers, for example, place great value on optimal working results. The following arguments speak in favour of these precision pliers: their free movement, low weight, the excellent cutting precision and long tool life, among other things thanks to the micro cutting edge misalignment. These benefits are the visible results of decades of experience in toolmaking, constant product development and the commitment by Knipex towards the highest quality standards: from material selection and processing through to finishing.

    Short overview

    • Precision pliers for the finest cutting work in electronics and precision engineering: shear cut with controlled micro cutting edge misalignment
    • Thanks to precisely shaped tips, also cut abutting wires accurately as from Ø 0.2 mm
    • Cutting capacity of soft wire up to 1.0 Ø mm; medium-hard wire up to 0.6 Ø mm
    • Head of the pliers at a 60° angle for ideal working in confined spaces.
    • Multi-component grips
    • Very smooth operating thanks to frictionless handle spring
    • Low weight (55 g)
    • Manufacture in accordance with high standards for optimum work results and a long tool life
    • Made from stainless surgical steel (INOX)
    • Cutting edge hardness approx. 54 HRC
