Product Description
For crimping wire ferrules according to DIN 46228 parts 1 + 4 in the range from 0.25 up to 2.5 mm². Crimping in marked trapezoidal dies for reliable connections between the sleeve and the conductor.
Technical attributes
Length | : | 145 mm | |
Width | : | 55 mm | |
Height | : | 25 mm | |
Weight | : | 175 g |
Documents
Detailed description

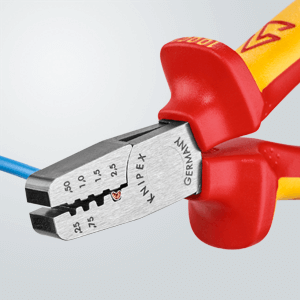

![]() | Position and permanently crimp end sleeves according to DIN 46228 Part 1 + 4 Also for work on live parts – e.g. in IT and on domestic electrical systems The 97 68 145 A crimping pliers from Knipex are a solid and accurate tool that can be used wherever end sleeves (ferrules) with a trapezoidal profile are crimped. The trapezoidal-shaped crimped end sleeves are especially suitable in the terminal strips on control systems due to the usually high and slim supports. The Knipex crimping pliers are also used in domestic electrical systems and industrial environments, where work on live parts can occur frequently. With the VDE tested multi- component grips, they comply with insulation standards IEC 60900 / DIN EN 60900. |
Custom-fit alignment of the crimp profile to the crimp volume
To achieve a crimp result in line with the standard, the crimp profile must be carefully matched to the material volume of the end sleeve (ferrule) plus wires. This means that here too it is essential to have the appropriate tool. Appropriate is also the key word when selecting the right crimp die. Four crimp dies of between 0.25 and 2.5 mm2 are available in total. The trapezoidal cross sections are clearly marked to ensure that the end sleeves (ferrules) are inserted correctly.
Accurate and reliable crimping
Manual force can be measured easily when crimping end sleeves (ferrules) with the 97 68 145 A crimping pliers. Once the correct crimp die has been selected, after crimping the end sleeve sits permanently and securely next to the conductor.

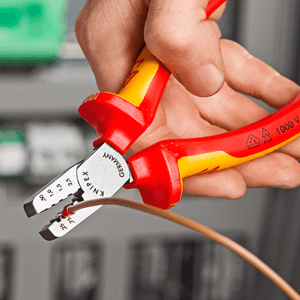

![]() | Crimping pliers from Knipex: good quality for maximum durability Crimping pliers for end sleeves (ferrules) from the Knipex range impress with their smooth-running and optimum transmission ratio. Crimping is easy. The Knipex crimping pliers are manufactured on modern machinery using vanadium electric steel, and are then oil-hardened. The safe use and great benefits of the tools are the results of decades of toolmaking experience, constant product development and the commitment by Knipex towards high quality standards. |
Short overview
- Forged crimping pliers for crimping end sleeves (ferrules) in accordance with DIN 46228 Parts 1 + 4 in the capacity range of from 0.25 to 2.5 mm2
- 145 mm long
- Net weight 175 g
- Manufactured from vanadium electric steel, oil-hardened
- Polished pliers head
- Handles insulated with multi- component grips; in accordance with IEC 60900 / DIN EN 60900, VDE tested
