97 22 240 | Crimping Pliers (Technical Details Inside) | Multi-Component Handle - 240mm

SKU: 97 22 240

Sale price
88.99 AED

Tax included

In stock, 2 units

Product Description

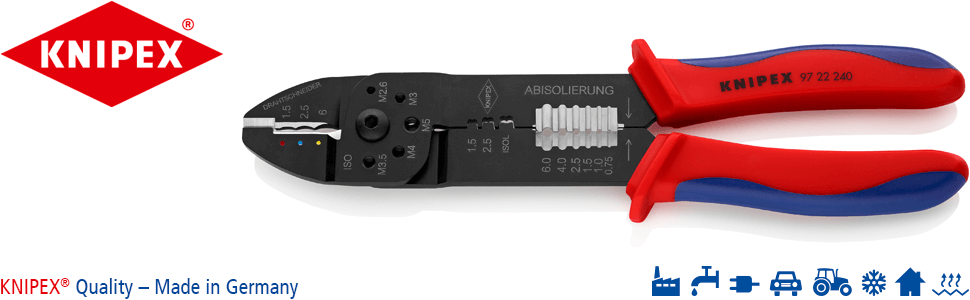

97 22 240 Crimping Pliers
For cutting cables, stripping wire and crimping insulated and non-insulated terminals, connectors and plug type connectors. With threaded holes for cutting copper and brass screws threaded M 2.6 / M 3 / M 3.5 / M 4 and M 5. Bolted joint for higher stability and even movement.
  • Applications: insulated terminals + cable connectors
  • Capacity in square millimetres: 0.5-6.0 mm²
  • Number of crimping positions: 3
  • AWG: 20-10
  • Technical attributes

     Length:240 mm
     Width:62 mm
     Height:25 mm
     Weight:270 g

    Detailed description

    For cutting, wire stripping, crimping and shortening: the multifunctional pliers

    An all-round tool with several useful aspects

    The Knipex 97 22 240 crimping pliers are ideal in a professional and semi-professional environment especially for smaller projects and tasks when the full range of tools is not available: on the car, in the camper van, on an airfield for model aircraft. Flat and pleasantly light at 300 g, you can easily take them with you in a jacket pocket or the outside pocket on work trousers. Thanks to the screwed, smooth-running and stable joint, all functions on these crimping pliers can be operated well. The multi-component grips sit comfortably in the hand.

    Cutting and insulating fine wire, shortening threaded pins and screws

    These universal crimping pliers can also be deployed before crimping: e.g. for cutting and stripping cable and wire. The suitably dimensioned openings prevent damage to the strands during wire stripping. A further function is available. As these crimping pliers are manufactured from high strength special steel, threaded pins and screws made of soft material can be accurately cut to length, while the thread is protected.

    For insulated cable connectors and plug connectors and for open, non-insulated plug connectors

    Crimping (crushing) plug connectors and cable connectors is an art, and depends on using the right amount of force. There must be enough for the cable connectors and plug connectors to be held securely on the cable, which is important to prevent spark formation and faults caused by loose connections, however plug connectors and cable connectors must not be crushed and then become unsightly and unusable. These crimping tasks can be performed well using the Knipex 97 22 240 crimping pliers: both on insulated or open plug connectors and on insulated cable connectors.

    Short overview

    • Universal-crimping pliers for insulated cable connectors and plug connectors as well as open, non-insulated plug connectors
    • Cut cable and copper wire up to 6.0 mm²
    • Net weight 300 g
    • Manufactured from high strength special steel for optimum work results and a long tool life
    • Screwed joint
    • With multi-component grips

    Crimping pliers from Knipex: high quality from universal to special pliers

    Knipex also offers a wide range of universal and special pliers for cutting to length, wire stripping and crimping. Every pair of pliers at Knipex is manufactured on modern machinery using special steel that is perfectly suited to the application in question. The great benefits of the tools and safe, comfortable use in everyday work are the results of decades of toolmaking experience, constant product development and the commitment by Knipex towards high quality standards.

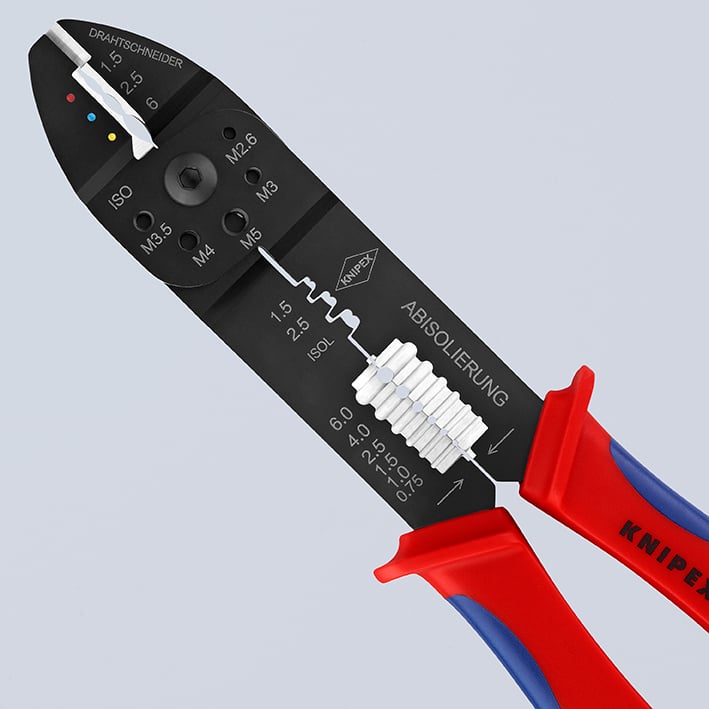

    Insulated cable connectors and plug connectors are crimped reliably.

    Screws and threaded pins made of copper and brass can be shortened using the 9722240 crimping pliers, while protecting the thread.

    Cable and wire can be cut using the sharply ground cutter on the pliers head.

    Cable with cross-sections of 0.75 / 1.0 / 1.5 / 2.5 / 4.0 and 6.0 mm² can be insulated without damaging the conductor.
