86 05 180 | Pliers Wrench - Dual Use Tool | Multi-Component Handle | Chrome Plated - 180mm

SKU: 86 05 180

Tether Attachment: No
Price:
Sale price196.99 AED

Tax included

Stock:
In stock, 1 unit

Product Description

86 05 180 Pliers Wrench
replaces the need for sets of metric and imperial spanners. smooth jaws for damage free installation of plated fittings - working directly on chrome!. Also excellent for gripping, holding, pressing and bending workpieces. Zero backlash jaw pressure prevents damage to edges of sensitive components. Fast adjustment by pushing a button directly on the workpiece. No unintentional shift of the gripping jaws and no slipping of the joint. Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size. The ratchet type principle allows quick and easy tightening and release of all bolted connections. Lever transmission greater than 10 : 1 for strong gripping power. with narrow gripping jaws - for tightening situations that require a slim tool.
  • Jaw thickness (joint) (B2): 8.0 mm
  • Joint thickness (B3): 12.0 mm
  • Tips thickness (B1): 5.0 mm
  • Adjustment positions: 15
  • Capacities for nuts: Ø 112
  • Capacities for nuts: 40 mm
  • Technical attributes


     Length:188 mm
     Width:55 mm
     Height:20 mm
     Weight:260 g


    Video

    Detailed description

    Pliers and wrench in a single tool

    The Knipex pliers wrench 86 05 180 – for classic applications such as plumbing

    The pliers wrench combines many functions: It replaces an entire set of wrenches in metric and imperial sizes, can be adjusted very quickly and directly on the workpiece at the touch of a button, as well as handling all gripping widths up to 40 mm or 1 1/2 inches thanks to infinite adjustment. The joint pin engages securely, preventing unintentional shifting. The smooth gripping jaws are parallel to each other and grip the workpiece without damaging edges or sensitive surfaces – work directly on chrome!

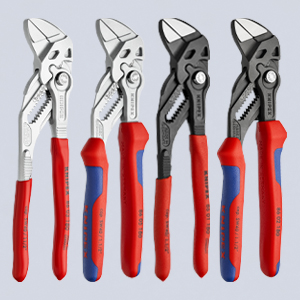

    The KNIPEX pliers wrench

    10-fold amplification of manual force: The excellent mechanics of the pliers wrench increases the applied manual force 10 times. It holds workpieces securely like a vice. Even flat objects can be gripped and processed easily thanks to the high pressing force and the parallel jaws.


    Short overview

    • Screws, grips, holds, bends and presses
    • Replaces a full set of wrenches
    • Grips continuously up to 40 mm or 1 1/2 inches
    • Protects sensitive surfaces
    • 10-fold manual force amplification
    • Direct working on chrome, brass, etc.
    • Fast adjustment on the workpiece at the touch of a button
    • Chrome vanadium heavy-duty steel, oil hardened

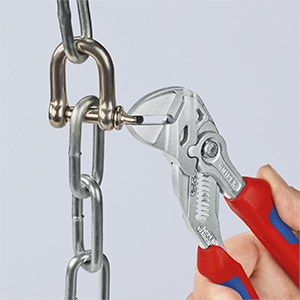

    Damage-Free Application - Work on finished or very sensitive surfaces (e.g. fittings in the bathroom) can be carried out damage-free (similar to illustration).

    Ratchet Principle - The special stroke of the gripping jaws enables time-saving screwing according to the ratchet principle (similar to illustration).

    Fast Push-Button Adjustment - Replaces a complete set of wrenches: It can be adjusted directly on the workpiece (up to 40 mm / 1 1/2 inch) using a push button (similar to illustration).

    Laser-Cut Size Scale - The redesigned KNIPEX pliers wrench features two laser-cut scales: metric on the front, imperial on the back. This means that you can set the gripping capacity in advance for workpieces that are more difficult to reach (similar to illustration).
