86 01 300 | Pliers Wrench - Dual Use Tool | Coated Handle | Black Atramentized - 300mm

SKU: 86 01 300

Price:
Sale price
244.99 AED

Tax included

Stock:
In Stock - 31 Units

Product Description

86 01 300 Pliers Wrench
replaces the need for sets of metric and imperial spanners. smooth jaws for damage free installation of plated fittings - working directly on chrome!. Adjustable tightening tool. Also excellent for gripping, holding, pressing and bending workpieces. Push the button for adjustment on the workpiece. Zero backlash jaw pressure prevents damage to edges of sensitive components. Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size. Reliable catching of the hinge bolt: no unintentional shifting. The ratchet type principle allows quick and easy tightening and release of all bolted connections. Lever transmission greater than 10 : 1 for strong gripping power.
  • Jaw thickness (joint) (B2): 9.5 mm
  • Joint thickness (B3): 15.0 mm
  • Tips thickness (B1): 9.5 mm
  • Adjustment positions: 24
  • Capacities for nuts: Ø 212
  • Capacities for nuts: 68 mm
  • Technical attributes

    Length :305mm
    Width :68mm
    Height :17mm
    Weight :645g
    Surface :Grey atramentized
    Handles :Non slip coating
    Head :Polished
    Adjustment positions :24


    Video

    Detailed description

    KNIPEX pliers wrench 86 01 300, black atramentised: pliers and wrench in one, 300 mm in length

    Now even better: KNIPEX pliers wrench with a length of 300 mm – grips widths across flats of up to a diameter of 68 millimetres (2 1/2")

    The KNIPEX pliers wrench, combining pliers and a wrench, is a real all-rounder and a vital part of any tool case. It replaces an entire set of wrenches, both metric and imperial. The new model with a length of 300 mm weighs around 80 g less than the previous model. Continuous gripping of widths across flats up to 68 mm (maximum 2 1/2"). Two practical laser-cut scales help to adjust the pliers wrench to the required width across flats (front metric, rear imperial) in advance. The gripping jaws can be adjusted quickly, reliably and conveniently using a push button. Thanks to smooth, parallel jaws, screw connections with sensitive surfaces, such as fittings, can also be screwed gently into place – all without any damage. In addition, the pliers wrench does not have to be removed when loosening or tightening nuts: The action of the gripping jaws permits screwing according to the ratchet principle.

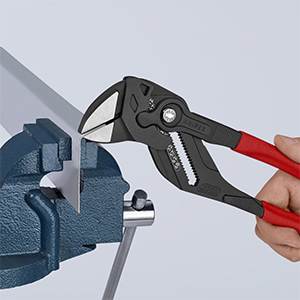

    Also for gripping, pressing or bending

    This proven tool can also serve as a mobile vice. Its high transmission ratio of approximately 1:10 enables an enormous increase in manual force for safely holding, gripping, pressing or bending workpieces. As an alternative to adjustment using the push button on the workpiece, the desired width across flats can be pre-adjusted in advance using the scale.

    Useful as pliers and as a complete set of ratchet wrenches

    The pliers wrenches from KNIPEX combine the functions of gripping pliers and wrenches in a single tool. Bolts, nuts and fittings of all widths across flats (metric and imperial) up to a maximum of 68 mm / 2 1/2" can now be tightened and loosened quickly and damage-free, other workpieces can be held, pressed or bent. A special advantage of the pliers wrench is the ratchet principle: This means that you don't have to remove it from the workpiece and reposition it again as with a wrench or adjustable wrench.


    Short overview

    • Grips widths across flats up to Ø 68 mm (2 1/2") thanks to two additional adjustment positions
    • Noticeably less weight, 80 grams lighter with the same stability
    • The laser-cut scales (metric and imperial) enable pre-adjustment of the width across flats.
    • Replaces an entire set of wrenches, both metric and imperial
    • Smooth jaws for damage-free installation of fittings with surface finishes – work directly on chrome
    • High lever transmission thanks to 10-fold manual force amplification

    Protects sensitive materials The continuously adjustable gripping jaws are parallel in every position: They grip the surface without play. This prevents damage to the edges, which is particularly important when working on parts with sensitive surfaces such as chrome, brass or plastic.

    Optimised version with laser-cut adjustment scales The new versions of the proven pliers wrench can be recognised by the laser-cut scales for pre-adjusting the handle widths: metric millimetre specifications (shown in illustration) on the front of the pliers, and inches on the back.

    Quick adjustment at the touch of a button The gripping capacity is easy and safe to adjust thanks to the spring-loaded push button: easy to use, no unintentional shifting and extremely time-saving.

    Work quickly thanks to the ratchet principle Similar to a socket or ratchet wrench, the pliers wrench can be used for screwing without needing to remove and reposition it on the workpiece.
