12 40 200 | Self-Adjusting Insulation Stripper

SKU: 12 40 200

Sale price
242.99 AED

Tax included

In stock, 1 unit

Product Description

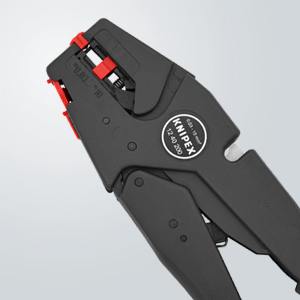

12 40 200 Self-Adjusting Insulation Stripper
For single, multiple and fine stranded conductors with plastic or rubber insulation. Adapts automatically to the respective cable cross-section; prevents damage to the conductor. Cutting depth can be adjusted for different insulation materials. With wire cutter for copper and aluminium wires, multiple stranded up to 10 mm² and single stranded up to 6 mm². Smoothly operating mechanism. Stripping blades and clamping jaws easily replaceable. Low weight. for thin ribbon cables up to 10.0 mm width in a single pass.
  • Stripping capacities in square millimetres: 0.03-10.0 mm²
  • Length stop: 3-18 mm
  • AWG: 32-8
  • Technical attributes

     Length:200 mm
     Width:95 mm
     Height:21 mm
     Weight:202 g

    Detailed description

    Different single layer insulated conductors – one pair of wire strippers

    Adjust by themselves. Insulate with one touch of the pliers. Protect the conductor.

    With these wire strippers, wire stripping is a piece of cake: insert cable, press the pliers handle, done. The Knipex 12 40 200 has been specifically developed for solid, multicore and finely stranded conductors of between 0.03 and 10.0 mm2 with a single layer of insulation. Such small conductor cross-sections – as with thin flat ribbon conductors with a width of up to 10 mm – are predominantly found in the area of electronics. The Knipex 12 40 200 is therefore bought frequently specifically for work in electronics.

    Straight blade for best work on single layer insulation

    Single layer plastic insulation is perfectly cut with the blades that are straight and so run parallel to the conductors. The insulation is only cut as deeply as needed for removal of the insulation layer. Very fine and multicore conductors also remain undamaged when the Knipex 12 40 200 is used correctly. What is more, work using these pliers is very economical: the operating principle selected here permits a wide capacity range, although they are not suitable for highly flexible and reinforced insulation materials, but rather only for single layer insulated cable.

    Save time and effort

    Compared to conventional wire strippers and stripping blades, the 12 40 200 self-adjusting wire strippers from Knipex require much less time and energy to be spent on wire stripping: less time because they adjust automatically to various cable cross-sections; less energy due to their smoothly operating mechanics and because they weigh just 202 g. The cutting depth can be adapted with just one hand movement for insulation materials with varying degrees of hardness.

    Wire strippers from Knipex: built for high benefits and long service life

    Knipex has a wide range of special products for the electronics and electrical industries. During wire stripping, wire strippers from Knipex protect the conductor in the cable and offer utmost comfort for the user. The great benefits of the tools and safe, comfortable use in everyday work are the results of decades of experience building tools, constant product development and the commitment by Knipex towards high quality standards. Pliers from Knipex are built for many years of use in a professional environment.

    Short overview

    • Self-adjusting wire strippers for solid, multicore and finely stranded conductors
    • For single layer insulation made of standard insulating materials
    • Also suitable for stripping thin flat ribbon conductors up to 10 mm wide
    • With wire cutter for multicore Cu and Al conductors up to 10.0 mm2 and solid conductors up to 6.0 mm2
    • Net weight 202 g
    • Housing made of glass fibre reinforced plastic
    • Blade made of oil-hardened special tool steel
    • Easily replaceable blade and clamping jaws

    Adjustable length stop makes uniform wire stripping easier.

    Wire cutters up to 10mm2, stranded.

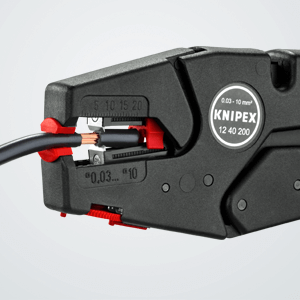

    Accurate wire stripping without damaging the conductor.

    Only the red area is cut into.
