Product Description
- With cutting edges for soft and medium hard wire.
- Without bevel, for flush cutting.
- Low-friction double spring for smooth and even opening.
- Sturdy, zero backlash box joint.
- The polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools.
- Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC
Technical attributes
| Length | : | 120mm |
| Width | : | 56mm |
| Height | : | 17mm |
| Weight | : | 98g |
| Surface | : | chrome plated |
| Handles | : | with multi component handles |
| Head | : | chrome plated |
| Bevel | : | cutting edges with bevel |
Detailed description

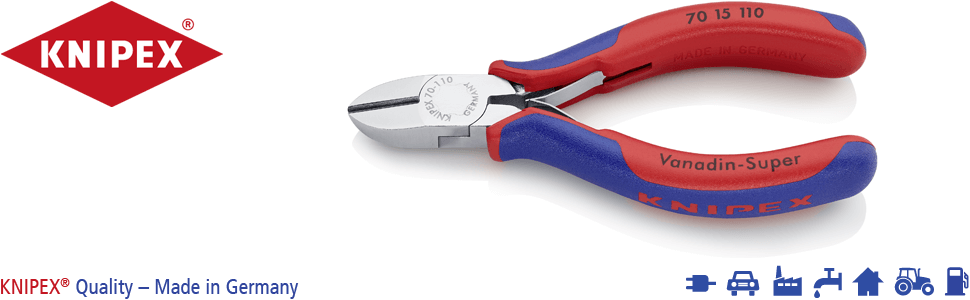

 | The compact diagonal cutters: 110 mm long Optimised for the craftsman’s everyday work Fit in any jacket pocket: the Knipex diagonal cutters in the 110 mm long version are small in terms of dimensions and big in performance. From the shape of the head through to the polish and hardness of the cutting edges, the Knipex 70 15 110 is customised for the diverse cutting tasks in the day-to-day work of electricians, mechatronics engineers and electronics engineers. Universal cutting capacity With their cutting capacities of up to Ø 1.2 mm on hard wire (e.g. wire rope fibre) and up to Ø 3.0 mm on soft wire (e.g. copper wire), the Knipex 70 15 110 diagonal cutters offer a broad range of applications. |
The long cutting edges make them ideal for cutting smaller cable. The extremely carefully and precisely machined cutting edges enable even very fine stranded wire to be cut accurately – up to the tips of the cutting edges.
This is an advantage where space is restricted, for example when shortening fine stranded wires in junction boxes or during work on electronic components.
Tough and durable
We forge the Knipex diagonal cutters from vanadium electric steel and make them strong by warming them and then quenching them in oil.
To achieve a permanently accurate cut we additionally use highfrequency current to give the cutters a hardness of approx. 62 HRC. The chrome plating simplifies cleaning of the tool and also serves as rust protection.
 | Knipex diagonal cutters: precise cuts right up to the tips of the cutting edges One can see how good diagonal cutters are by the cut. Knipex diagonal cutters deliver lasting high performance. In addition to the quality forged metal parts made of vanadium electric steel, the most important quality criteria at Knipex include the precise machining of the tool steel manufactured in Germany. The material to be cut is cut cleanly. The length and sharpness of the blades of the Knipex 70 15 110 are designed for high performance – even in confined spaces. The high quality and hardness of the blades assure a long service life. |
Short overview
- Versatile, compact diagonal cutters
- Cut hard wire (e.g. wire rope fibre) up to Ø 1.2 mm and soft wire (e.g. copper wire) up to Ø 3.0 mm
- Precise cutting also of fine CU wire, even with the tips of the cutting edges
- Are also suitable when working in confined spaces thanks to their slim head shape
- Opening spring simplifies work
- Handles with multi-component grips
- Production according to higher standards for optimal work results and a long service life
- Cutting edges hardened to approx. 62 HRC for strength and a long tool life, pliers chrome-plated
- Vanadium electric steel, forged, oil hardened
Cutting edges additionally induction hardened, cutting edge hardness approx. 62 HRC.
Slim head shape for use when working in confined spaces.

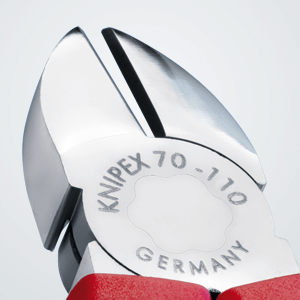

Precision cutting edges for soft and hard wire.

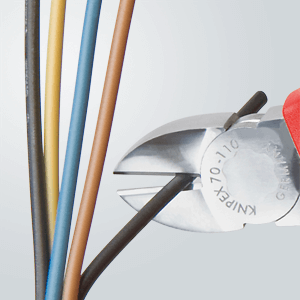

Accurate cut right into the tips of the cutting edges.
