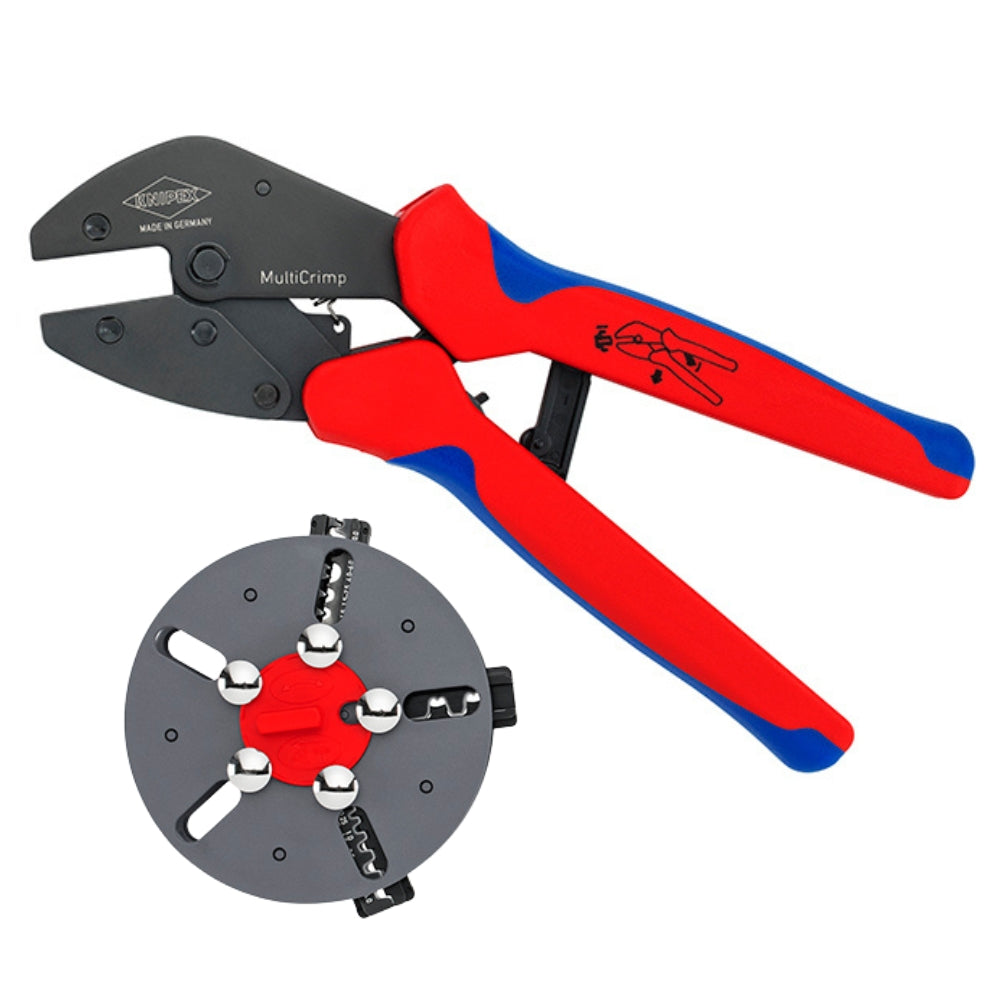

Knipex | 97 33 03 | MultiCrimp Lever Action Photovoltaic Crimping Pliers w/ Profile Magazine

SKU: 97 33 03-00

Universal, high-performance crimping pliers of professional quality for photovoltaic systems.
Just one tool with three crimping dies for MC4® / MC4® Evo 2, uninsulated cable connectors and wire ferrules.
Quick and easy change of crimping dies without additional tools.
For PV cables, earthing conductors and cabling to the meter cabinet.

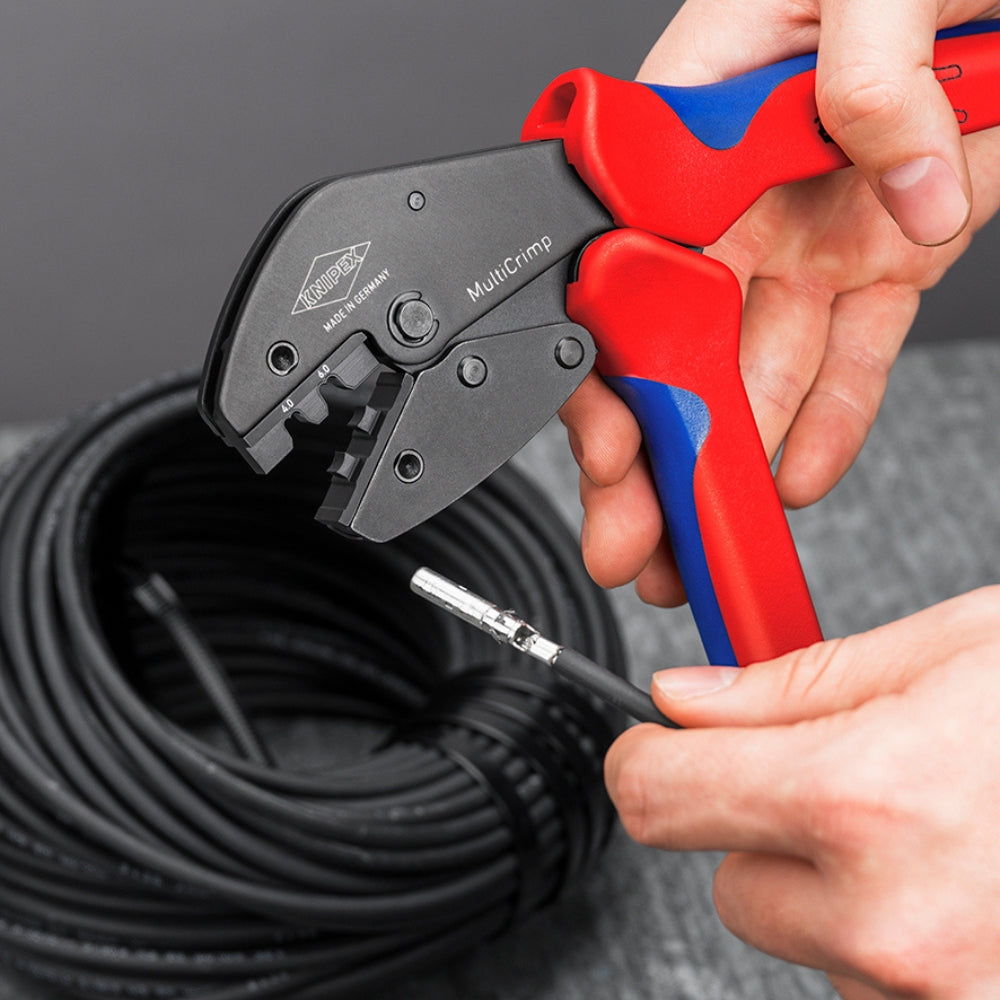

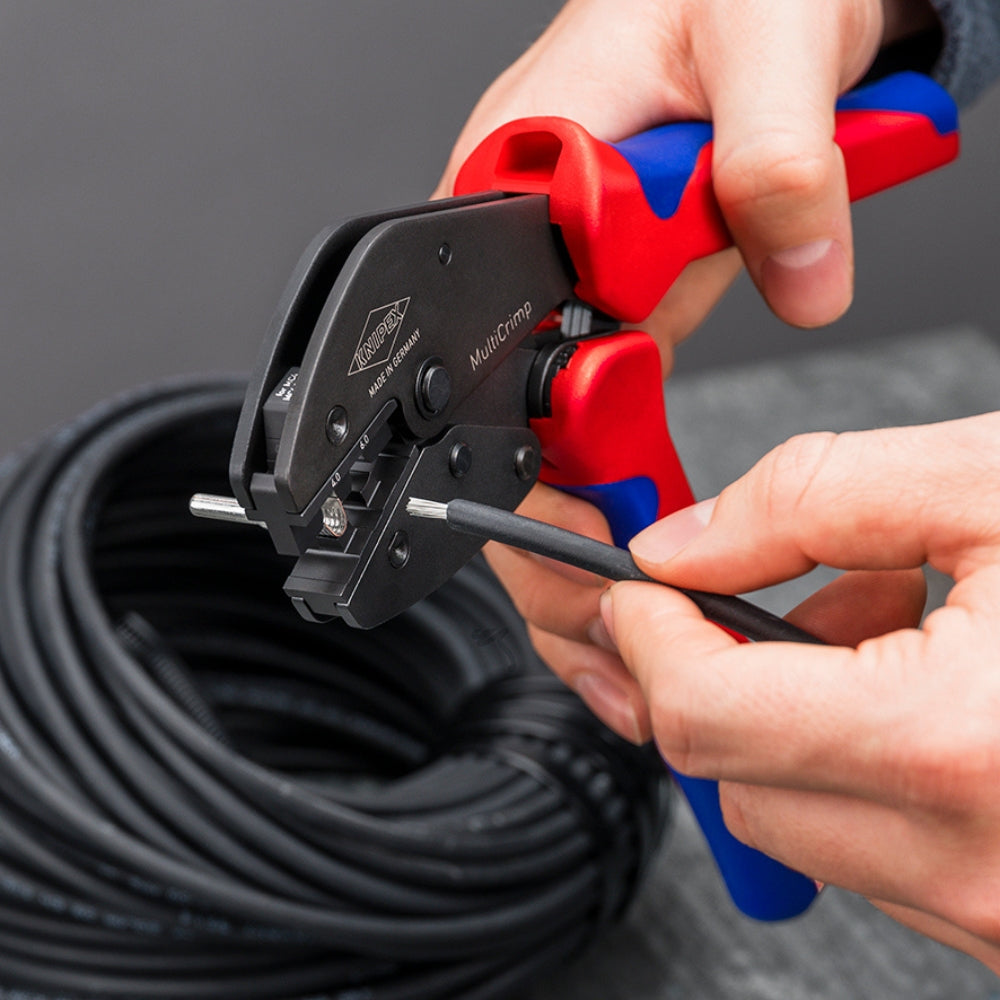

Crimps connectors for PV conductors - with crimping die 97 39 42 for MC4® and MC4® Evo 2 connectors in 4 and 6 mm².
Crimps connections of e.g. earthing cables - with crimping dies 97 39 13 for uninsulated cable connectors 0.5 - 10 mm².
Crimps conductors from the inverter to the meter cabinet - with crimping dies 97 39 08 for insulated and uninsulated wire end ferrules 0.25 - 6 mm².

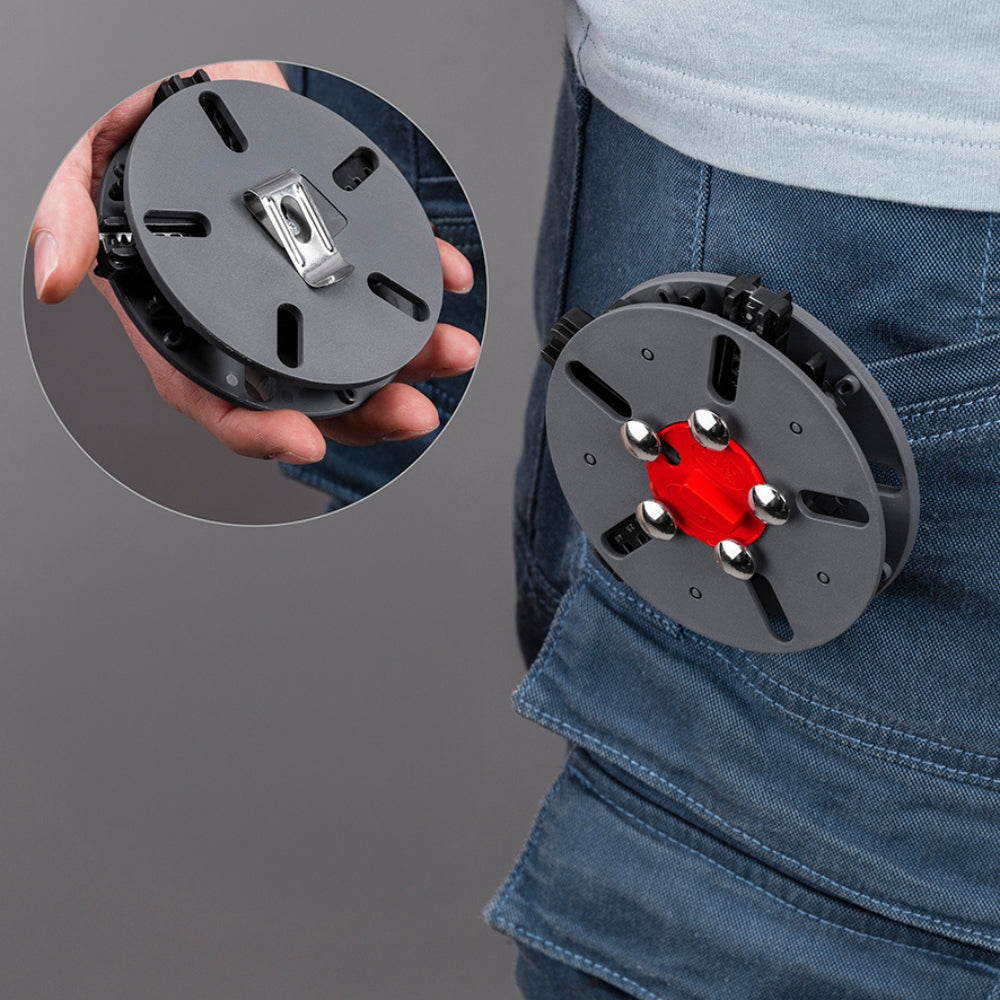

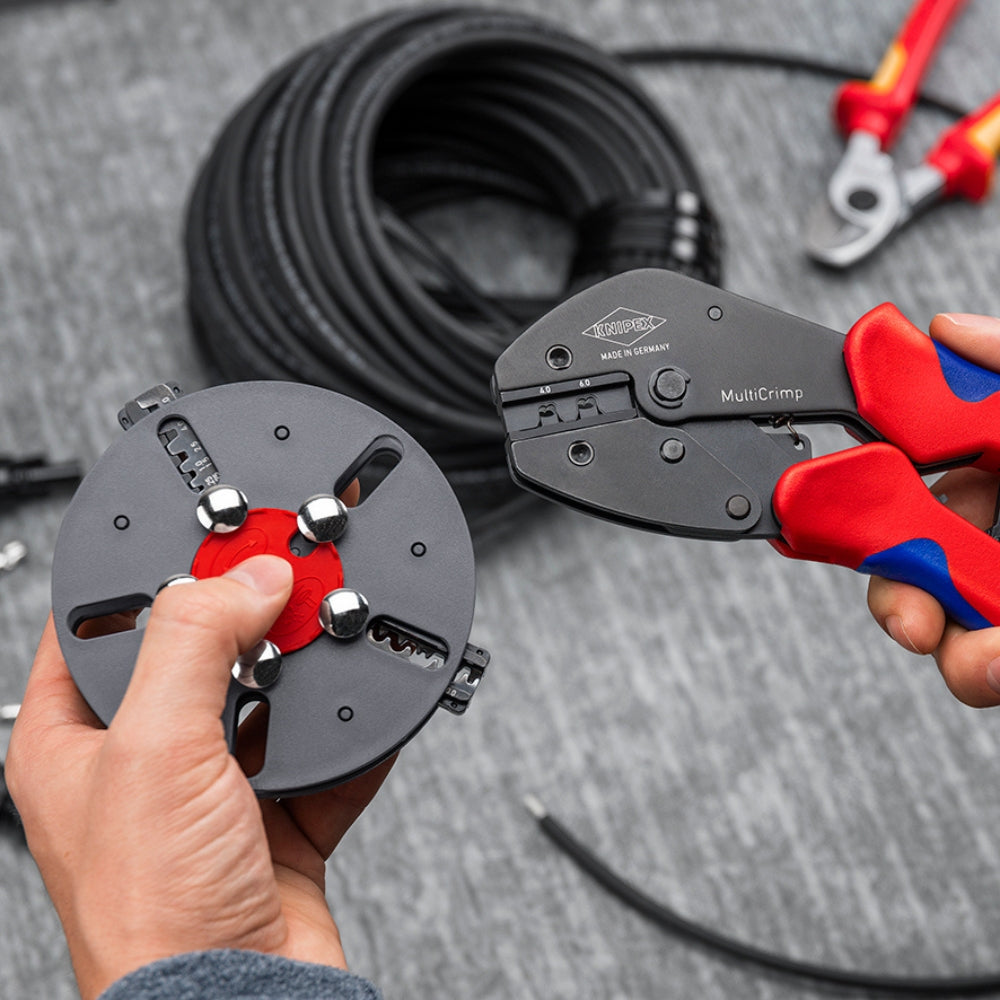

Safe and protected storage of the interchangeable dies in a round magazine for up to 5 crimping dies.
Customizable with optional crimping dies 97 39 05/06/09.
Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable).
The Crimping Dies 97 49 xx of the Crimp System Pliers 97 43 200 are
not compatible with the KNIPEX MultiCrimp 97 33 01/02/03.
