Product Description

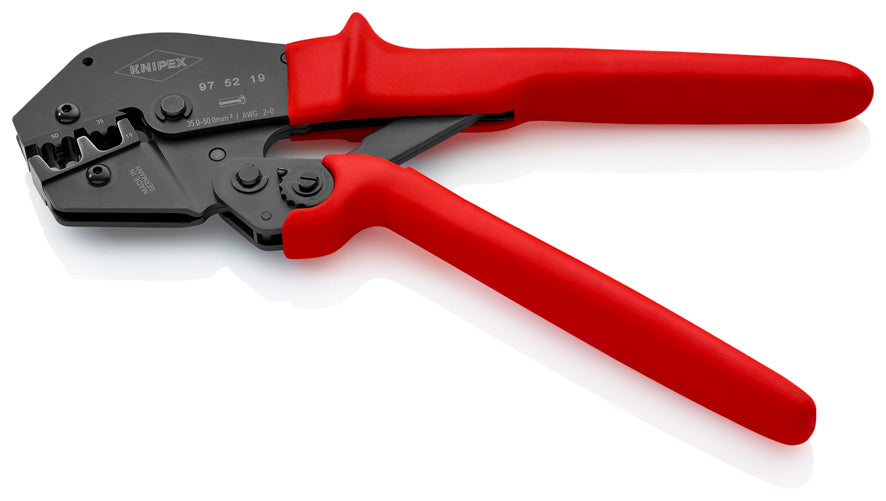

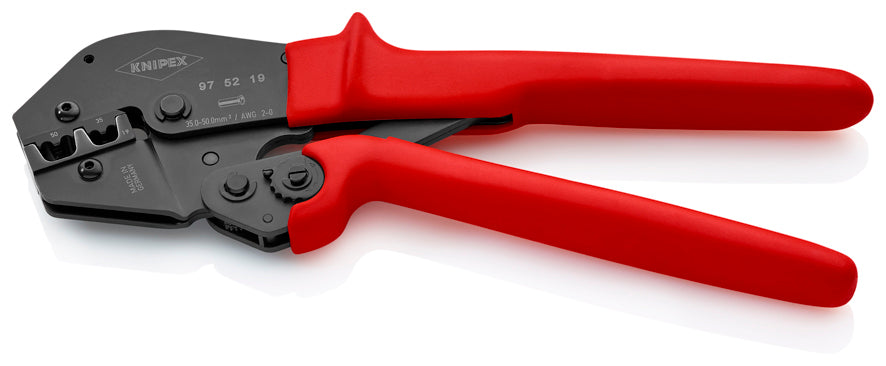

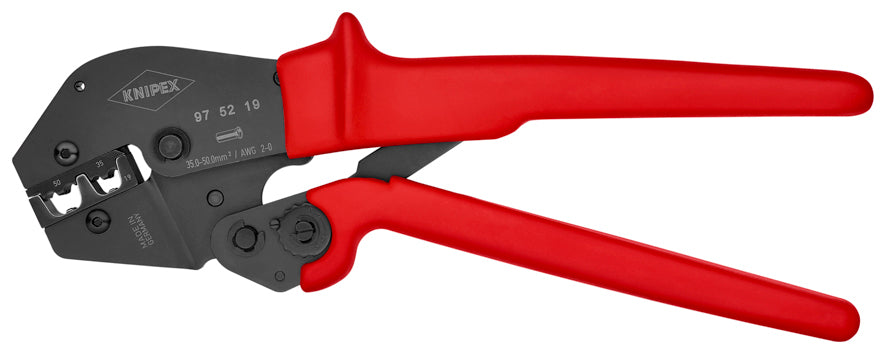

97 52 19 Crimping Pliers For two-hand operation
- The lever transmission reduces the hand force up to 30% compared with regular crimping pliers
- Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
- Precise, factory calibrated crimping pressure
- Two-hand operation for easy crimping of large conductor diameters
- Easy handling as a result of well balanced center of gravity, angled head and ergonomically shaped handles
- Crimping die is not exchangeable
Documents
Detailed description
 | Crimping pliers especially for insulated cable lugs, plug and butt connectors Precise crimping – which is why they are called Knipex PreciForce Crimping is high-precision work. Crimp profile and crimping pressure must be precisely matched to the connectors and corresponding cable used to create a connection that is permanently mechanically and electrically safe and secure. The Knipex PreciForce is impressive – also with frequently repeated crimping – due to the light, compact design with toggle lever reinforcement of manual force and precision crimp profile. The ideal, hand-friendly amount of pressure is exerted with precision on the connector being connected to the cable. |
Accurately repeated crimping due to automatic opening of pliers after completed crimping operation
With the Knipex PreciForce, the user can carry out repeated tasks accurately because the pliers do the job of measuring manual force for him. The PreciForce 97 52 36 is ideally set (calibrated) in the factory to insulated cable lugs, plug connectors and butt connectors. The integral lock blocks premature opening of the pliers before the set upper limit has been achieved using hand pressure. The pliers open automatically only on reaching the set crimping pressure, enabling the user to concentrate completely on crimping. The integral lock can be released where necessary, and the pressure of the pliers can be adjusted manually.
Accurately machined, durable crimp profiles
With the Knipex PreciForce range of pliers, every crimp application has its own version with specially machined crimp profile. One specialist pair of pliers, one application. The Knipex PreciForce is manufactured from special high-grade chrome vanadium electric steel and is oil- hardened. The Knipex PreciForce 97 52 36 is therefore a purchase that will last for a long time and for a special field of application: crimping insulated cable lugs, plug connectors and butt connectors of between 0.5 and 6.0 mm2.
 | Crimping pliers from Knipex: quality from universal through to special pliers Knipex offers an extensive range of quality universal and special pliers for crimping. Those who use tools a lot and professionally every day expect a quality that permits simple and safe work and which lasts for many years of hard use. We produce our tools from quality materials, machine them with great precision on up-to-date machinery, and harden them carefully using repeated heat treatment. Every pair of Knipex pliers represents more than 130 years of specialist know-how. |
Short overview
- Crimping pliers for crimping insulated cable lugs, plug connectors and butt connectors
- Capacity 0.5 - 6.0 mm²
- 3 crimping dies
- 220 mm long
- Net weight 487 g
- Crimping pressure accurately calibrated in the factory, and adjustable where necessary
- With integral lock, release mechanism
- Manufactured from high-grade chrome vanadium electric steel, oil-hardened
- With multi-component grips
